Guilin Hongcheng's Environmentally Friendly Cement Pulverizer | Cement Fine Grinding Mill for Sale


Release date: 2022-06-22 09:29:21

Green and low-carbon development has become a complex project and long-term task for the comprehensive transformation of economic and social development, and the adjustment of energy structure and industrial structure will become a long-term goal. If the powder enterprise is not based on new energy, energy saving and consumption reduction, the economic development of the enterprise and society will be greatly impacted. However, HCM's environmentally friendly cement pulverizer will bring a new development path for the enterprise.



Under the requirements of environmental protection, enterprises that use traditional cement grinding mills have been hit hard

Looking back on the past three years, a series of national environmental protection policies have been introduced, and the construction of ecological civilization has yielded a lot. All polluting mills, beneficiation, sand and gravel and other enterprises have been rectified and stopped production, which shows the strict environmental protection.

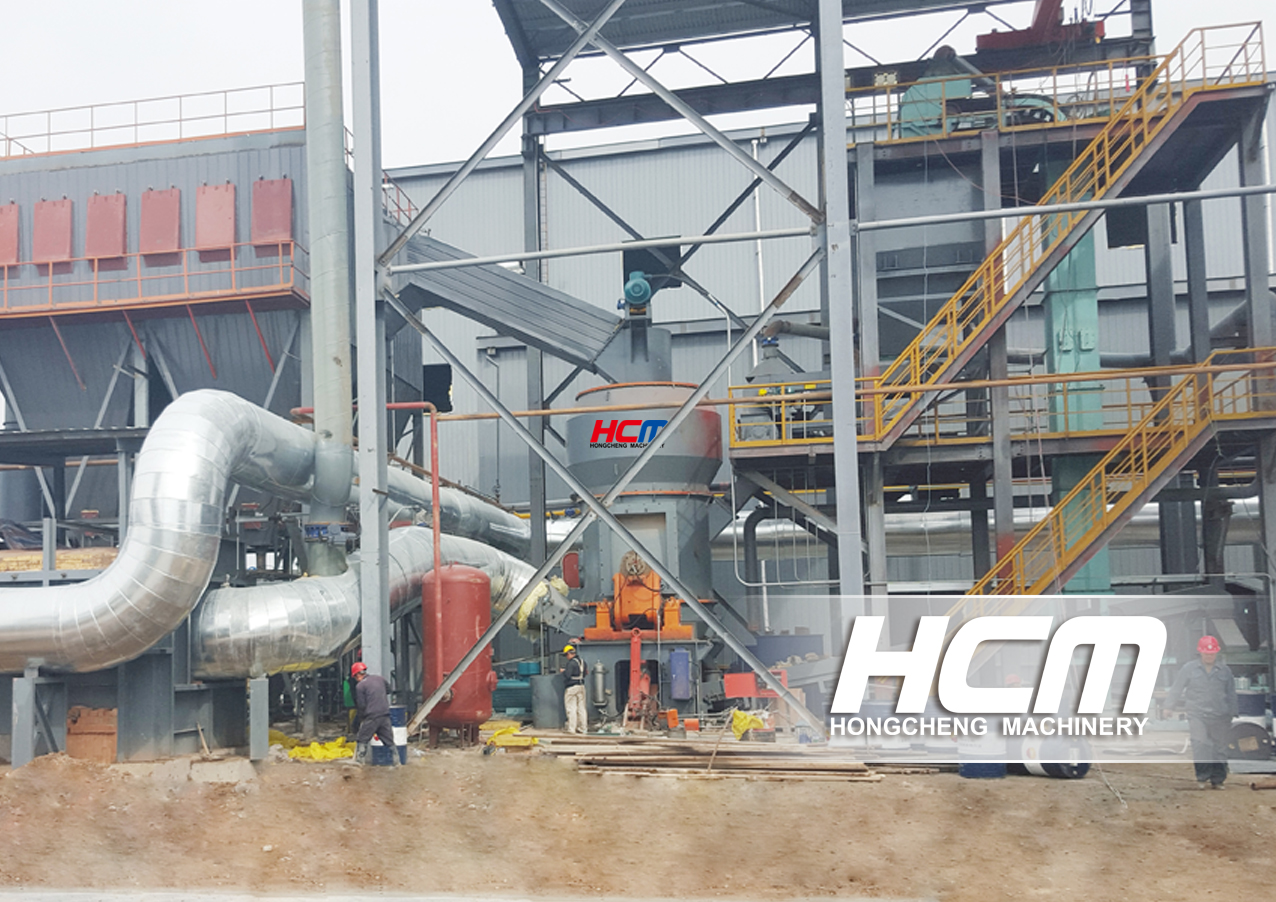

Guilin Hongcheng Environmental Protection Grinding Mill

How can we alleviate the problem that the cement grinding mill will be shut down? The use of HCM's environmentally friendly cement pulverizers is more in line with environmental protection standards, with ingenious manufacturing, and structural upgrades and optimizations. It has the advantages of environmental protection, green, energy saving and high production capacity that traditional pulverizers do not have.



HLM Raw Meal Vertical Mill Specifications and Technical Parameters

Model

Diameter of grinding disc (mm)

Capacity(th)

Raw material moisture

Raw meal fineness

Motor Power(kw)

HLM30/2

2500

85-100

<10%

R0.008<12%

800/900

HLM34/3

2800

130-160

<10%

1120/1250

HLM42/4

3400

190-240

<10%

1800/2000

HLM44/4

3700

190-240

<10%

2500/2800

HLM50/4

4200

240-300

<10%

3150/3350

HLM53/4

4500

320-400

<10%

3800/4200

HLM56/4

4800

400-500

<10%

4200/4500

HLM60/4

5100

550-670

<10%

5000/5400

HLM65/6

5600

600-730

<10%

5600/6000

Note: The grindability (Bond) index of raw materials is less than or equal to 13kWh/t; the moisture content of raw materials is less than 10%

Specifications and technical parameters of HLM cement pre-powder vertical mill

Model

Diameter of grinding disc (mm)

Capacity(th)

Raw material moisture

Product specific surface area

Motor Power(kw)

HLM24/2P

1900

35-45

≤2%

220-260m2/kg(R0.08≤15%

560

HLM26/2P

2000

42-55

≤2%

630

HLM30/2P

2500

60-75

≤2%

900

HLM34/3P

2800

90-110

≤2%

1400

HLM35/3P

2800

130-160

≤2%

2000

HLM42/4P

3400

160-200

≤2%

2500

HLM44/4P

3700

190-240

≤2%

3000

HLM45/4P

3700

240-300

≤2%

3800

HLM53/4P

4500

300-380

≤2%

4800

HLM56/4P

4800

330-420

≤2%

5300



Note: Grindability of raw materials (Bond) index≤18kWh/t

Advantages of HCM's Environmentally Friendly cement grinding mill

(1)Integration, large capacity

Guilin Hongcheng Environmental Protection Mill has multiple functions such as crushing + drying + grinding + grading + conveying. Compared with ball mills, the energy consumption is 40%~50% lower. It can be used in the field of cement raw meal and cement clinker. Adjust between 22-180μm. With an annual output of more than 1 million tons, there is no pressure.



(2)Structural upgrade and pollution elimination

The structure of the plum blossom stand is stable and firm, the body shakes and vibrates, and the body online adopts the soft connection form, which has the functions of shock absorption and self-wear reduction, and achieves the mute effect of grinding operation. With the full negative pressure operation system, there is almost no dust overflow, reducing dust pollution.



(3)External assistance, more thorough environmental protection

  The equipment is equipped with a patented pulse dust collector, which can fully capture the spilled dust, eliminate pollution in all directions, and make environmental protection work more thorough.



If you are facing the trouble of not meeting the environmental protection standards and the crisis of production suspension, put on-line HC Milling (Guilin Hongcheng) environmental protection mill, and work together to win the battle of environmental protection. If you want to buy powder processing equipment, please feel free to consult online or call the hotline. We will scientifically configure a complete set of environmentally friendly and efficient grinding equipment for you!



Please contact mkt@hcmilling.com or call at +86-773-3568321, HCM will tailor for you the most suitable grinding mill program based on your needs, more details please check www.hcmilling.com.
