Limestone HCH Ultra-fine Grinding Mill

The most Economic and Practical Ultra-fine Powder Processing Equipment, the Energy-saving and Reduce Consumption Equipment fro ultra fine Powder Processing

Max feeding size: ≤10mm
Capacity: 0.7-22t/h
Fineness: 325 mesh - 2500 mesh (0.04-0.005mm)
Limestone HCH ultra-fine grinding mill is especially suitable for ultra fine grinding. With years’ accumulation of experience in R&D, which is a new ultra fine pulverizing equipment designed by HCM. The product fineness can be adjusted between 325 mesh to 2500 mesh (0.04-0.005mm), maximum capacity reach 22t/h. The powder processed by Limestone Grinding Mill can be used as the main raw material for glass production. Lime and limestone are widely used as building materials and are also important raw materials for many industries. Calcium carbonate can be directly processed into stone and fired into quicklime. Hydrated lime is prepared into lime slurry, lime paste and lime mortar, which are used as coating material and adhesive for brick and tile. It features in space-saving, completeness, wide usage, easy operation, smooth performance, high performance-cost ratio and high efficiency. The HCH1395 Grinding Mill is the biggest ultra fine circle-roll grinding mill in China.
X
Your need leave your E-mail address before download the product PDF.Your coopration is appreciate.
Limestone HCH Ultrafine grinding mill_20201102144331.pdf

  • *Name:

  • *Email:

  • Tel:

  • Warm Tip: Please make sure you enter a correct E-maill address .We will send you relevant information and product quotation regularly
    mkt@hcmilling.com PDF Download +86-(0)773-3568321 +86-(0)773-3568987
    We're here to help:
    Easy ways to get the answers you need. SERVICES ONLINE >
    • Introduction
    • Mill Structure

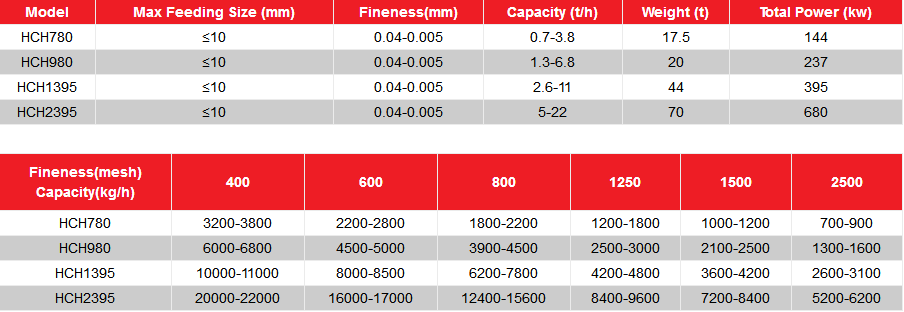

    • Main technical data
    • Performance advantages

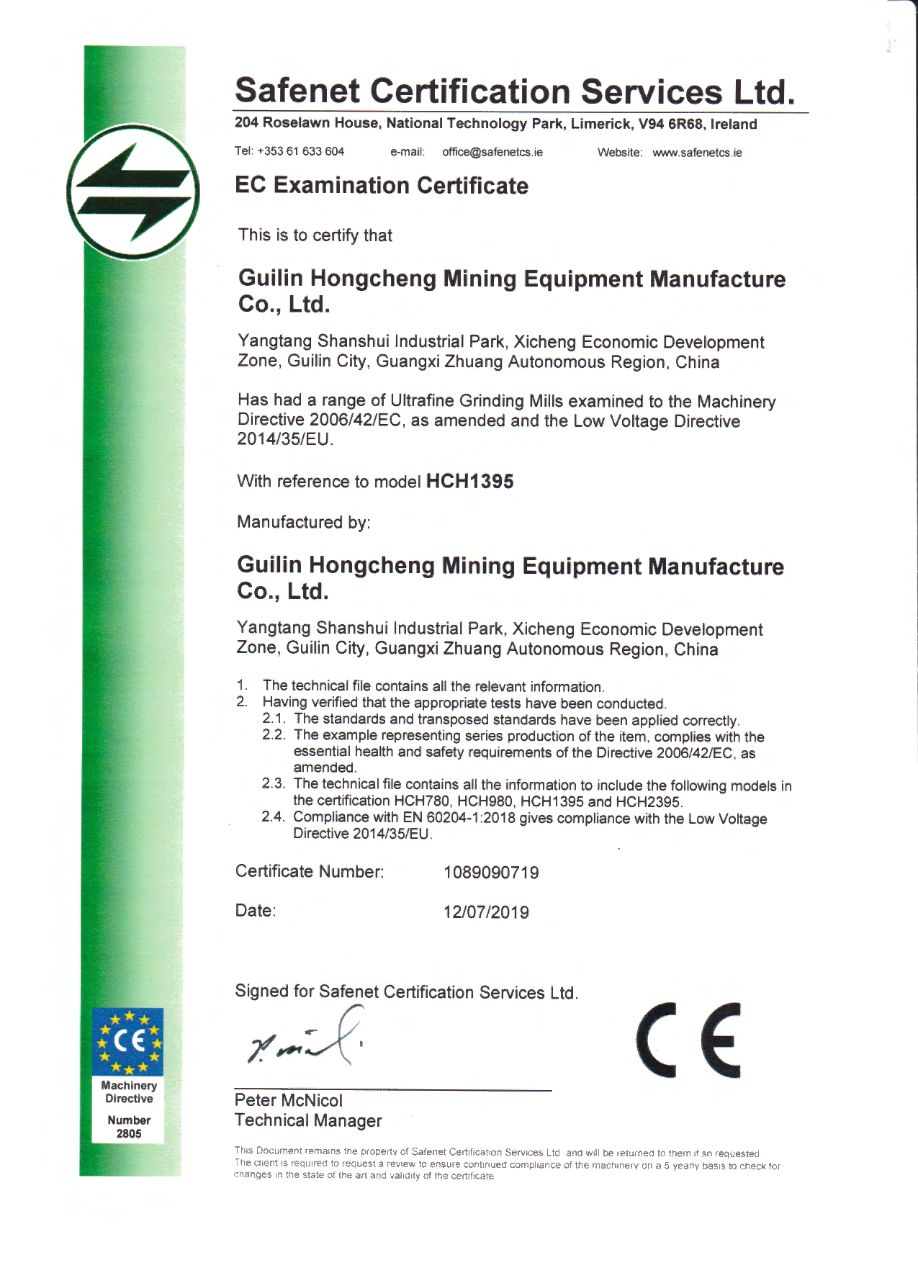

    With years’ accumulation of experience in R&D, the Limestone HCH ultra-fine grinding mill is new ultra fine pulverizing equipment designed by HCM. The product fineness can be adjusted within a range from 325 mesh to 2500mesh and its disposable fineness can reach D97 ≤ 5um. HCH ultra-fine grinding mill is especially suitable for ultra fine grinding. After a long period of market application practice and user authentication, the device HC1395 model was certified by the China Association of calcium carbonate for energy-saving equipment in China's calcium carbonate ultra-fine processing industry. HCH1395 is the biggest ultra fine circle-roll grinding mill in China.



    This HCH ultra-fine grinding mill features in space-saving, completeness, wide use, easy operation, smooth performance, high performance-cost ratio and high efficiency.



    Working Principle:

    Technological process: The pre-grinding raw ore material will be crushed into particles10mm and transport to the feeding hopper by the elevator, then feed into the grinding chamber by the feeder. The grinding rollers equip on the rotary table rotates around the centre shaft. There is flexible gap between the roller and ring. The rollers rotate outward by the centrifugal function to compress the fixed ring. The rollers also self- rotates around the roller pin. When material passed through the gap between the ring and roller, the material will be smashed by the rotating rollers. Four layers of rollers. Material will be grinded 1st time when passing the 1st layer of roller and ring. Then be grinded second, third and fourth time when loop through each layer rollers. Thus the materials were grinded sufficient and obtain much fine powder. The powder fallen down onto the bottom table by gravity will goes up to the classifier for separation by the airflow from blower. The qualified fineness passing from the classifier will be collected by the pulse bag collector as final product, while unqualified fallen down for regrinding till passing through. The powder goes with air flow into the pulse bag filter and collects by the discharging valve. The wind path is in circulation and the airflow is in negative pressure. There will be no dust escape, so the equipment can ensure a no dust operation in workshop.

    HCH Ultra-fine Grinding Mill consists of main mill, classifier, blower, belt feeder, storage hopper, pipe system, pulse dust collector, gearing system and electric control cabinet.

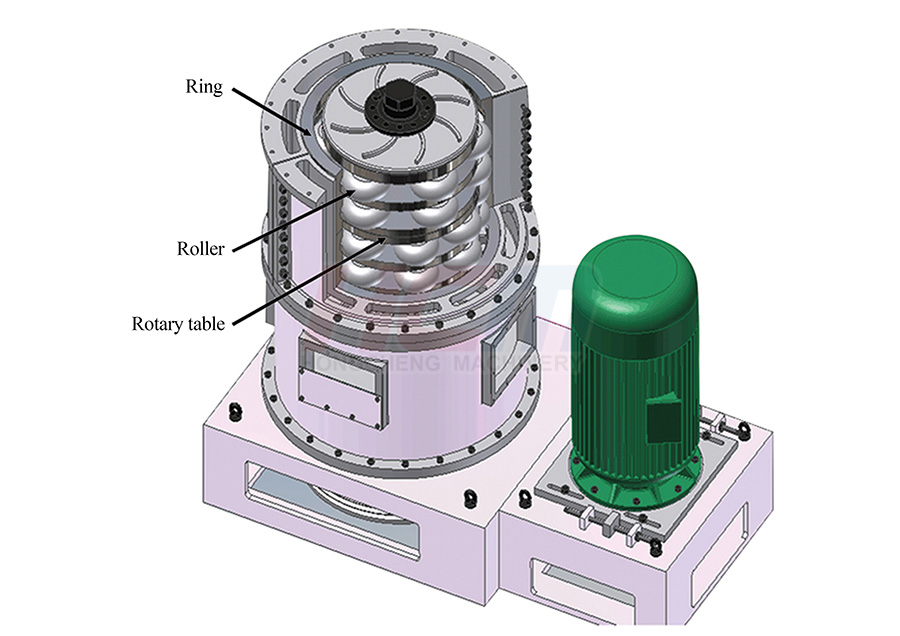

    Structure of the main mill



    Note: The specification is just a reference. The actual production depends on these materials being processed.

    Technical Advantages and Features



    1. Reliable Performance

    Higher production capacity and lower power consumption: Non metallic mineral particles feed which feeding size is less than 10mm, can be one-time processed as < 10 m powder (97% passing). The particle size less than 3um accounted for about 40%,which contributes to a larger specific surface area. It has the advantages of low cost, high efficiency, and good product fineness.



    2. Forced Turbine Classifying System (Patent no.: ZL201030143470.6)

    Wide fineness and flexible adjustment: Turbine classifier (patent no.: ZL201030143470.6). The fineness can be adjusted flexibly from 0.04mm (400 mesh) to 0.005mm (2500 mesh). Products with various fineness can meet the market needs and improve your competitiveness.



    3. Environment-friendly: Full Pulse Collecting System (Patent No. CN200920140944.3)

    Environmental protection: The pulse collecting system will remove 99.9% of the dust, ensuring dust-free operation environment. The pulse dust collection system is Hongcheng special invent comply for the environment protection requirements.



    Thorough CleaningThe pulse dust collection system is adopted with pulse-jet type of cleaning. By utilize the compression air to shoot clean each filtering bag. High and complete dust cleaning. Prevent bags from powder stocking.



    4. Lower Wear-resistance Rate

    The wearing parts(roller and ring) made from special wear-resistant material which prolongs working life.



    5. Absorb Vibration and Compact Structure, high safety and reliability

    The mill base is inblock casting, which ensures the structural strength and alleviates vibration.
